红色玻璃特性(Red Glass Characteristic)
牌号
Type |
厚 度
Thickness
(mm) |
A[2856K] |
D65 |
化学稳定性
Chemical
Stability
|
ND |
α×10-7
(/℃) |
Tg
(℃) |
Ts
(℃) |
S |
| x |
y |
Y |
x |
y |
Y |
DA |
DW |
| HB1 |
2 |
0.457 |
0.403 |
74.4 |
0.319 |
0.325 |
73.2 |
|
|
1.673 |
|
|
|
4.09 |
| HB3 |
2 |
0.642 |
0.337 |
16.6 |
0.578 |
0.324 |
11.1 |
|
|
1.604 |
102 |
577 |
638 |
3.37 |
| HB5 |
2 |
0.401 |
0.133 |
0.2 |
0.204 |
0.039 |
0.2 |
2 |
2 |
1.591 |
|
|
|
3.26 |
| HB6 |
2 |
0.569 |
0.365 |
1.4 |
0.403 |
0.251 |
1.0 |
3 |
3 |
|
|
|
|
|
技术要求(Technical Indexes)
牌号
Type |
厚度
Thickness
(mm) |
405
(nm) |
420
(nm) |
436
(nm) |
510
(nm) |
530
(nm) |
570
(nm) |
650
(nm) |
680
(nm) |
700
(nm) |
| HB1 |
2 |
|
74.3～80.7 |
|
57.9～71.3 |
|
63.5～74.7 |
|
≥76.4 |
|
| HB3 |
2 |
|
|
440
1.0～9.0 |
|
≤0.9 |
|
45.0～70.0 |
|
|
| HB5 |
2 |
≥35.7 |
|
≤7.1 |
|
|
|
|
|
|
| HB6 |
2 |
|
|
|
|
|
590
0.8～2.0 |
640
1.1～2.5 |
|
2.1～4.8 |
汽泡、条纹、应力类级别(Class Of Bubble
Stripe Stress)
牌
号
Type |
气
泡
Bubble |
条
纹
Stripe |
应
力
Stress |
| HB1 |
C |
3C |
3 |
| HB3 |
C |
3C |
3 |
| HB5 |
C |
4 |
3 |
| HB6 |
C |
4 |
3 |

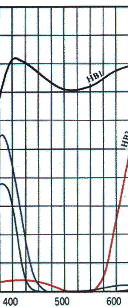

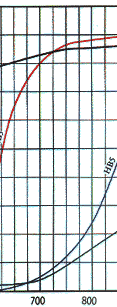

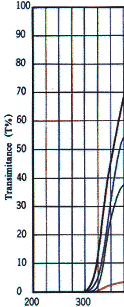

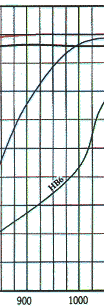

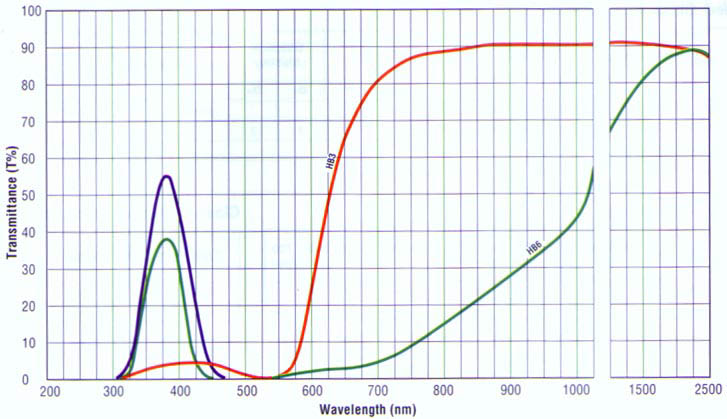

特性曲线图(Wavelength)
|
|
|
|
